Tabletop Lamp
Design Statement:
Design, 3d print, and wire a small battery powered lamp.
5 Week Project - Fall 2025
Design Direction Reference
Direction 1: Monolithic
High Fidelity Model
Final Assembly
Marketing Poster
Proof of Concept Model
My proof of concept was loosely assembled with disconnected parts, to prove the light worked. It revealed that I needed to adjust the transparency of the diffuser, and integrate it with the base.

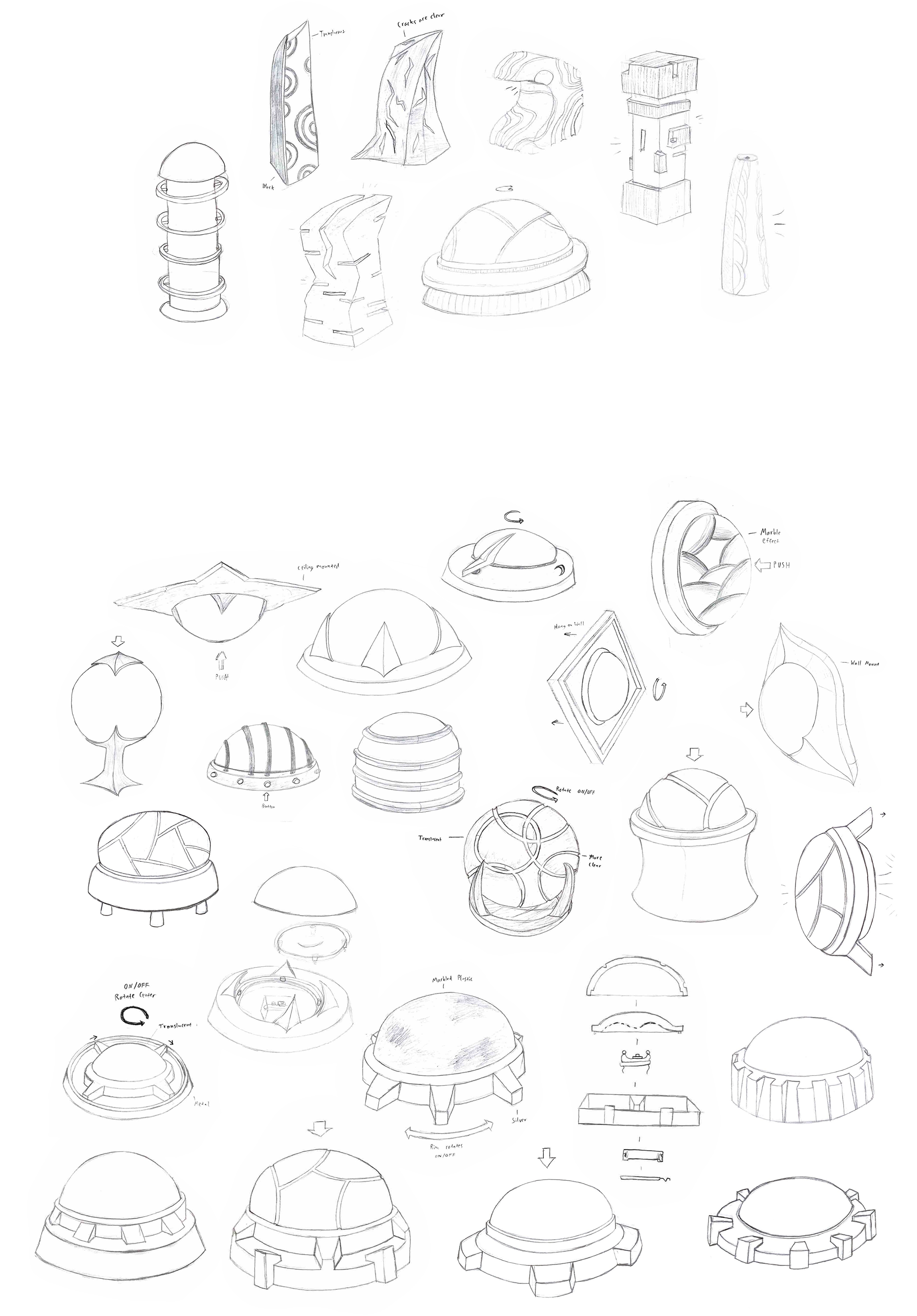

Iteration Sketches
Ideation Sketches
Direction 2: Ornate
After testing the high fidelity model, I printed a stronger push bar, and was ready to prime and paint.
Diffuser locked in place after assembly with slight vertical movement space.
Batteries are covered by a plate held by a screw on the underside.
Final CAD
With the high fidelity CAD I designed the latching mechanisms and electronic mounts.
Mechanical Details
Pushing down on the diffuser dome pushes the on button
Base plate held in by friction fit.
