Motion-Detecting Bedroom Guide Light

Design Statement:

Design, build, and code an intelligent product using an Arduino.

5 Week Project - Fall 2025

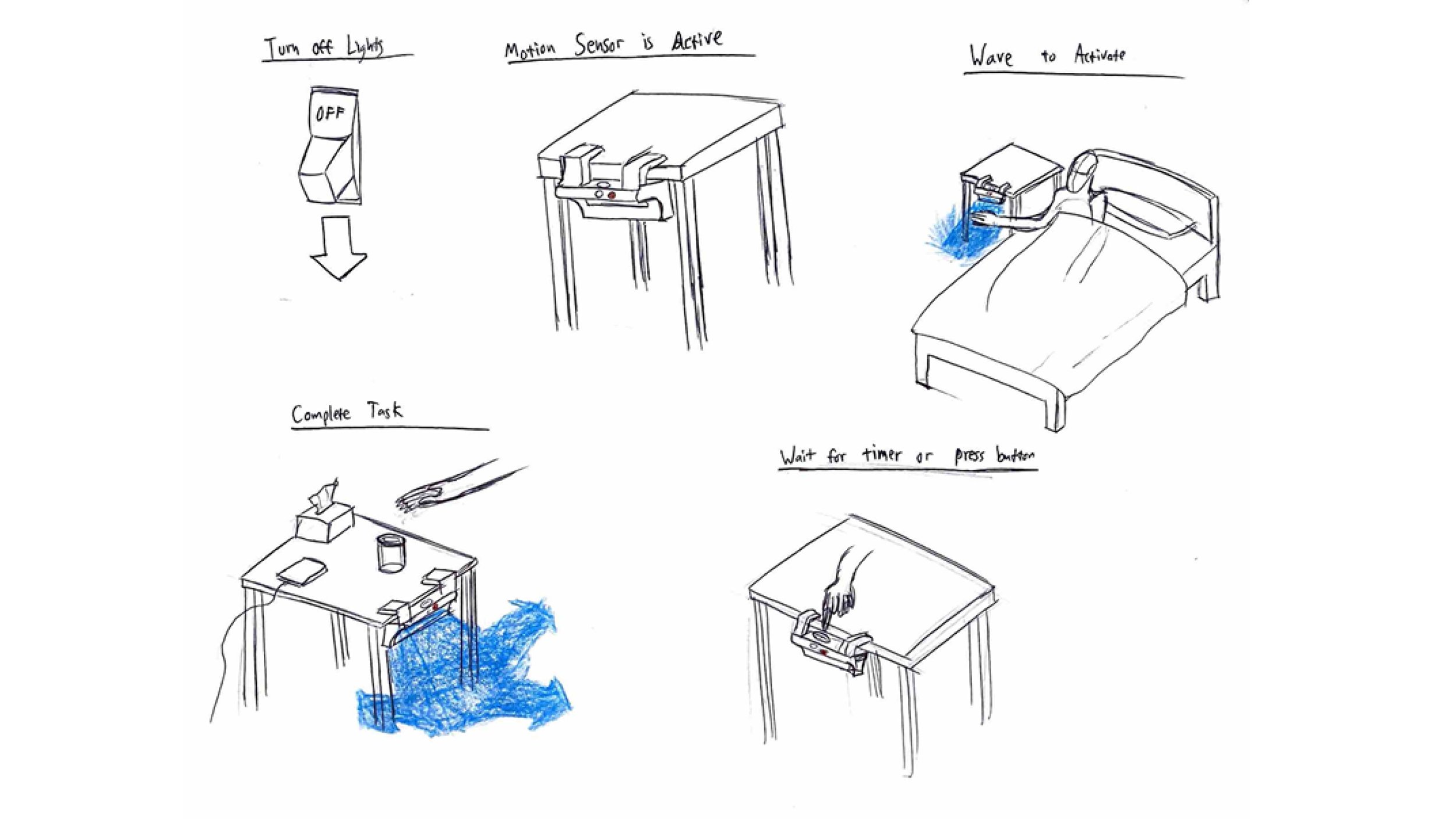

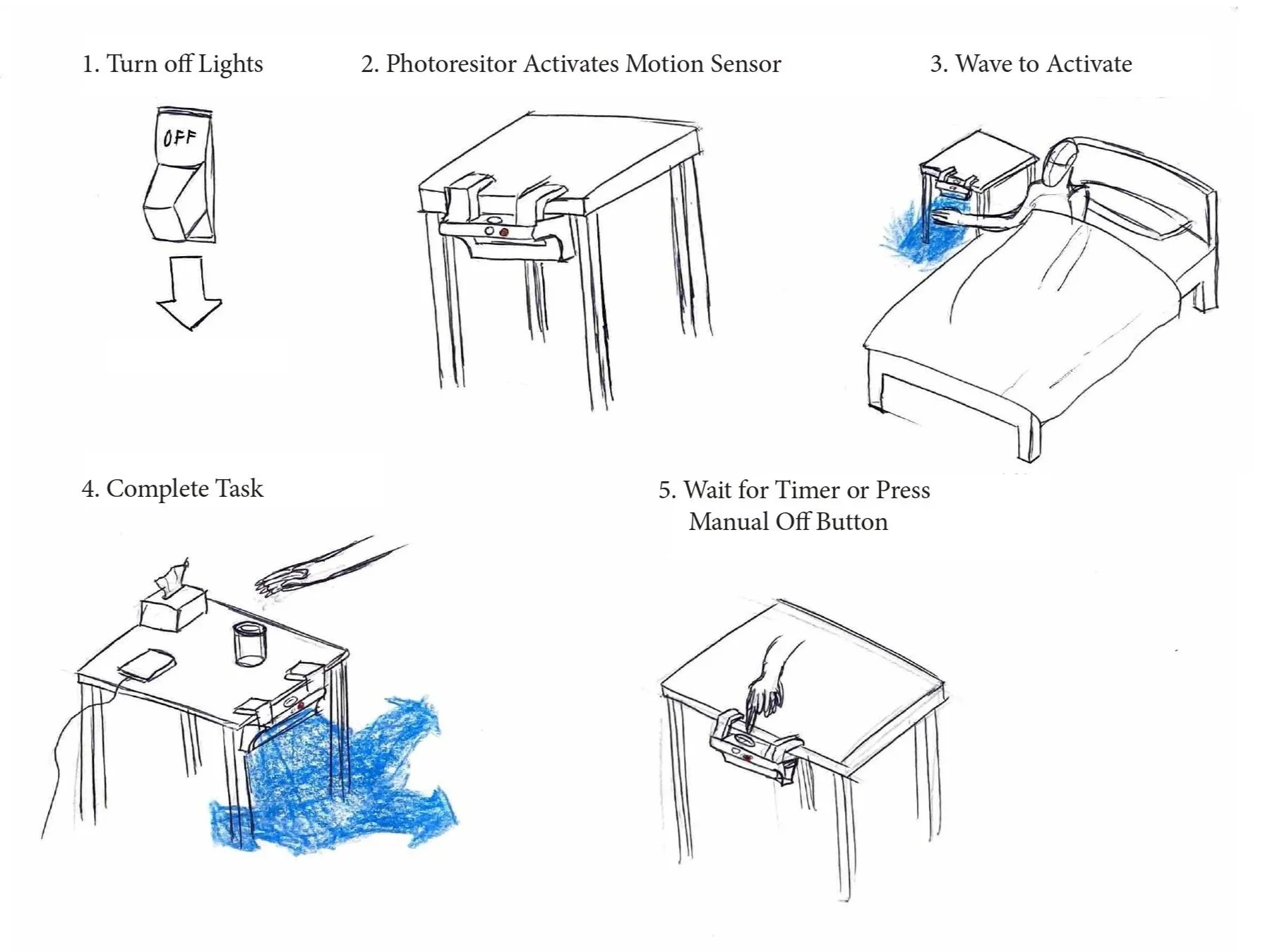

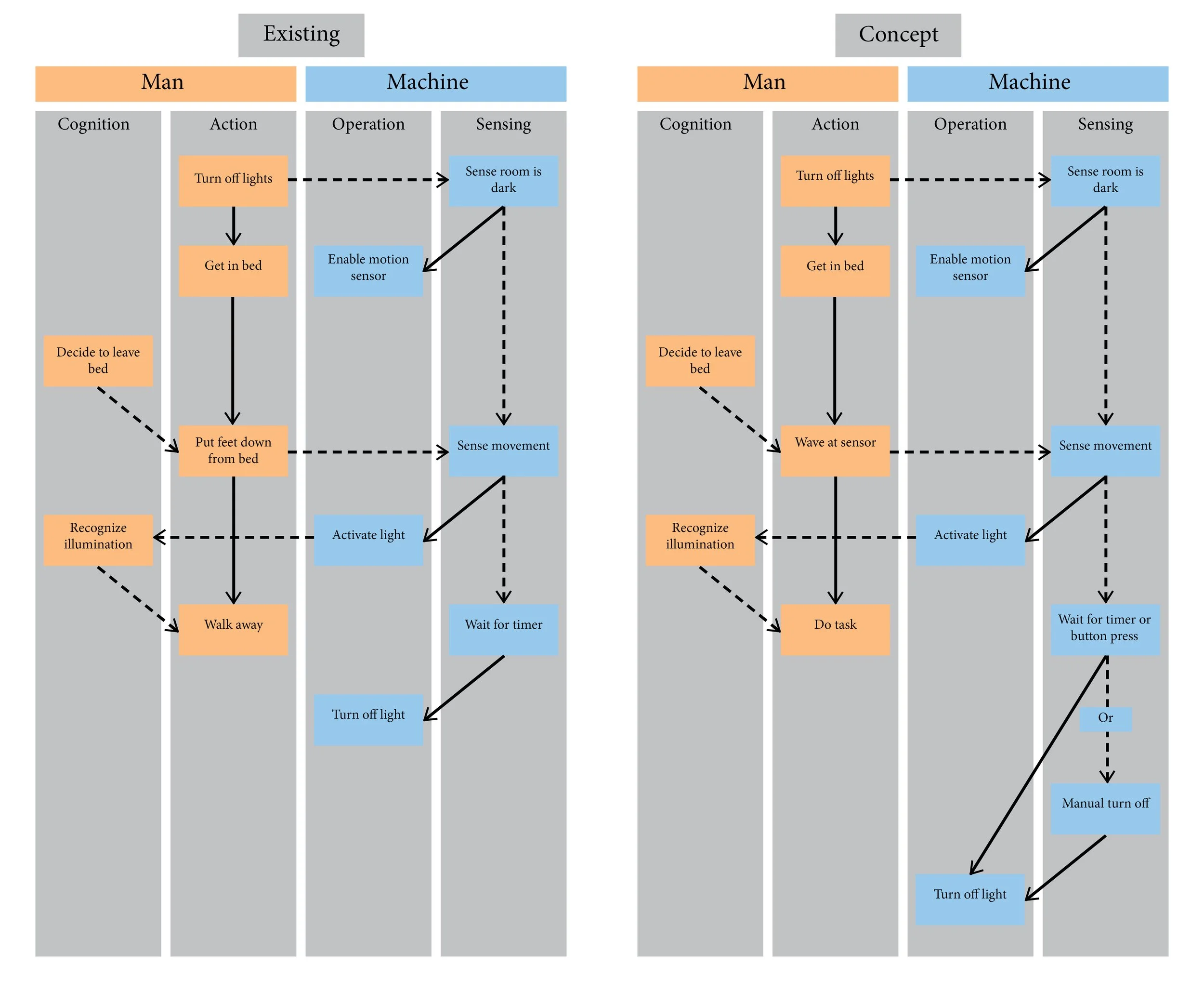

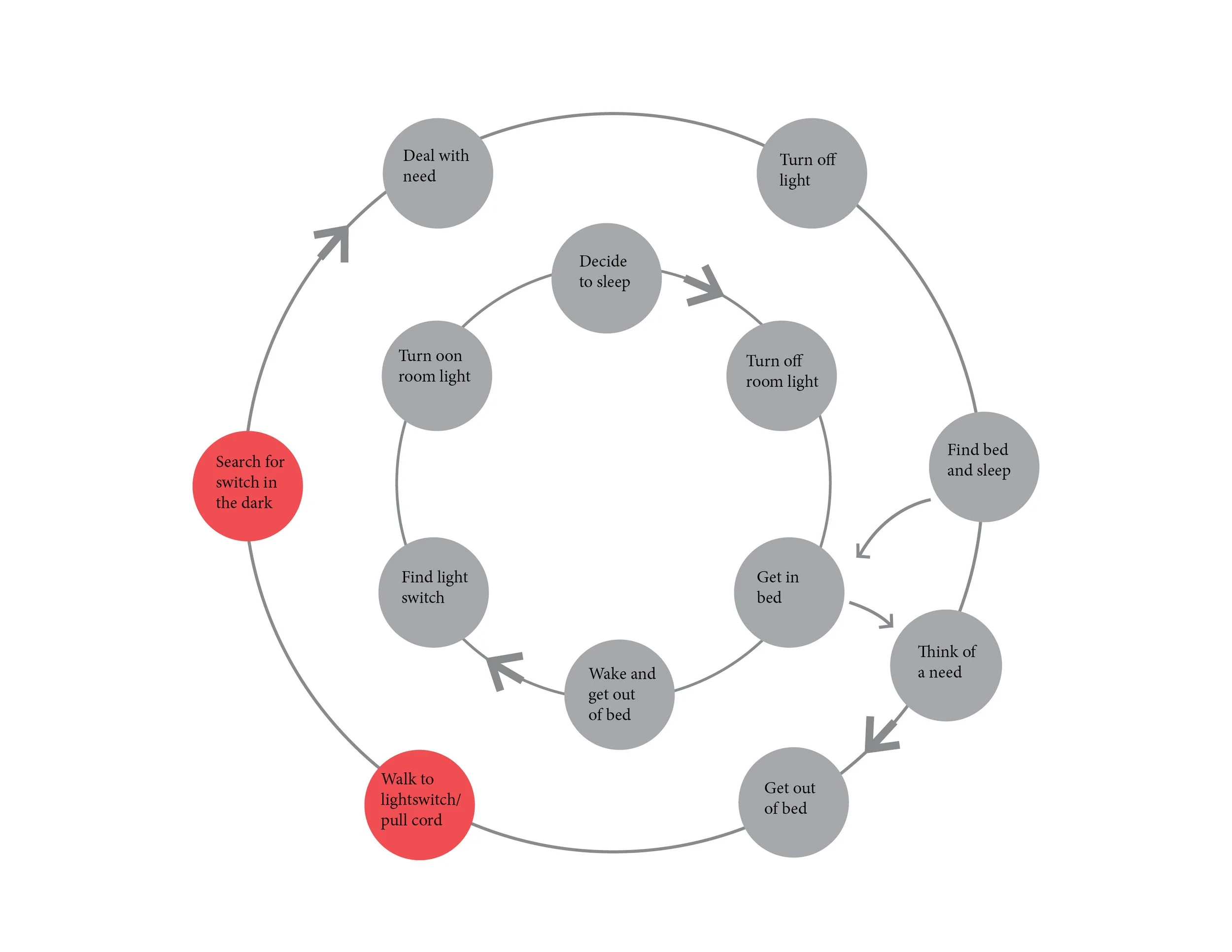

Research and HMI flow

For this project I made a night light to solve the problems of needing light to walk a short distance at night.

The primary pain point is bedrooms where it is difficult to access a light switch at night.

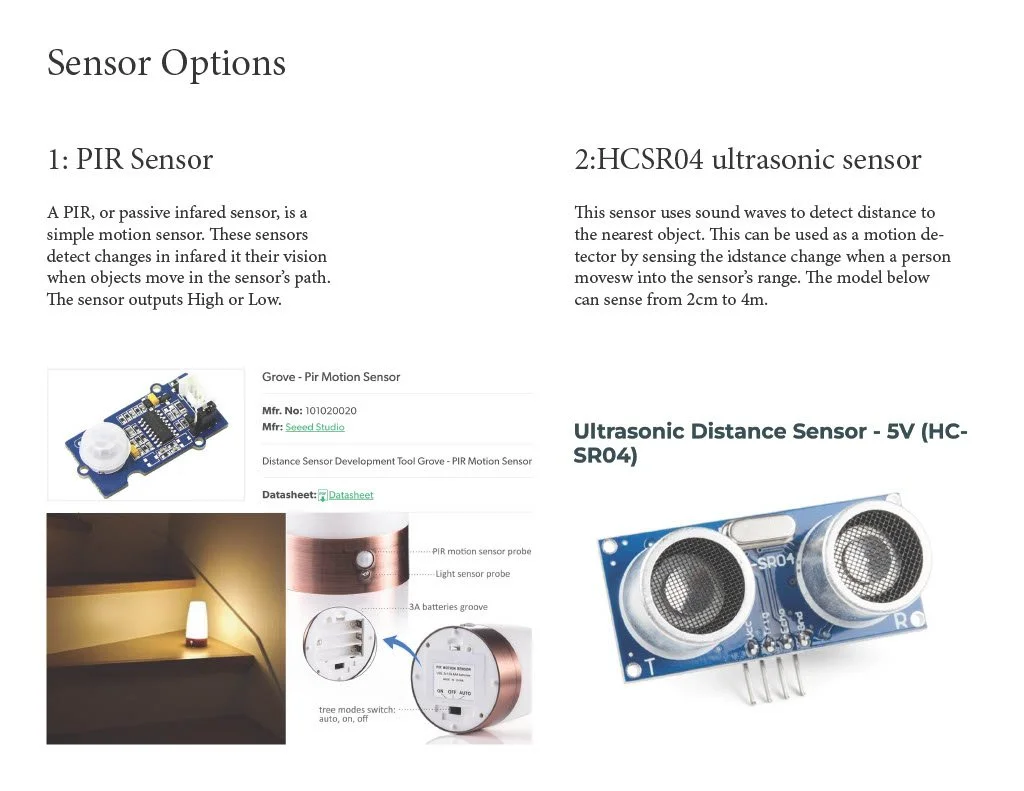

Reference images from the internet

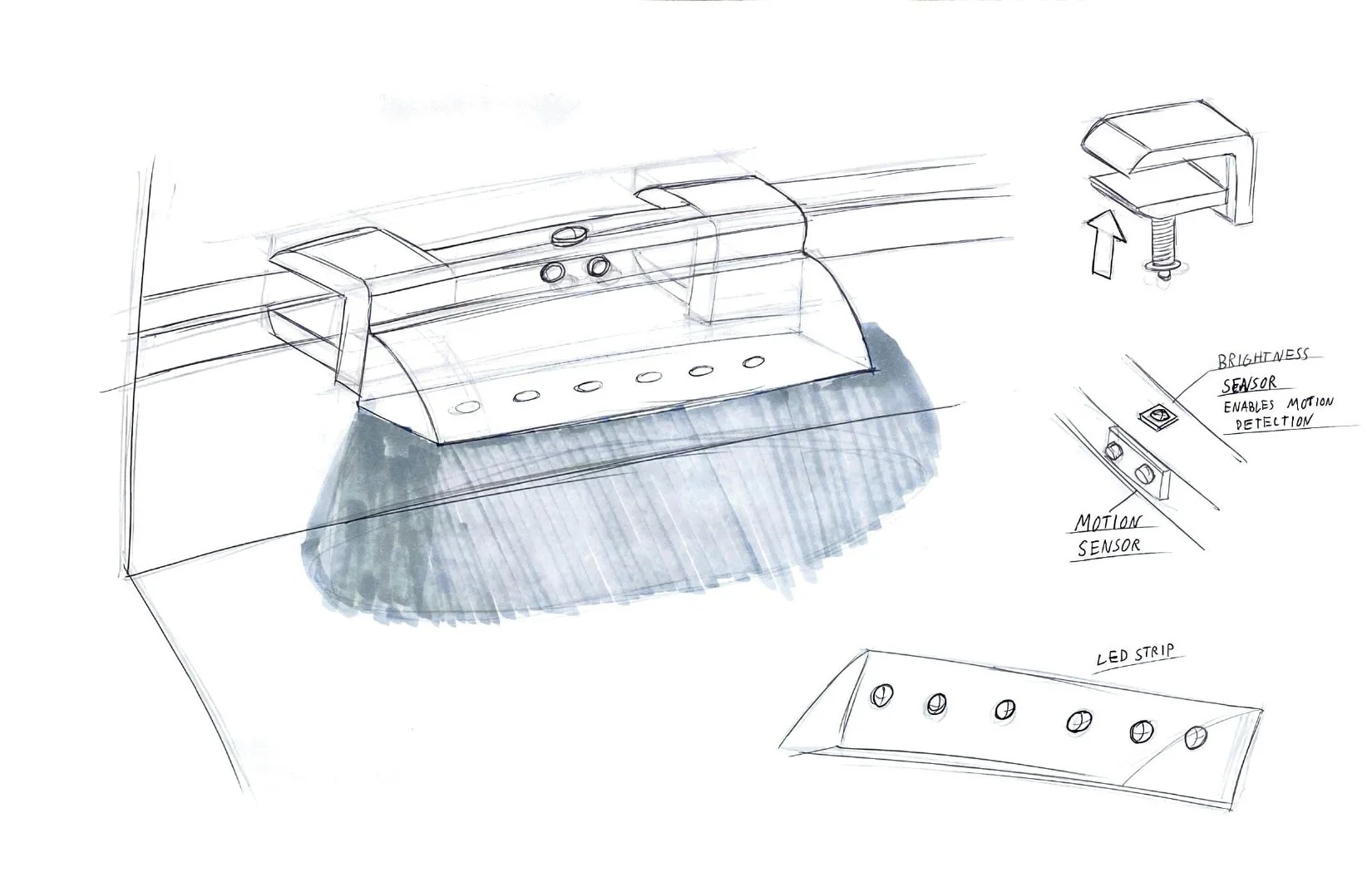

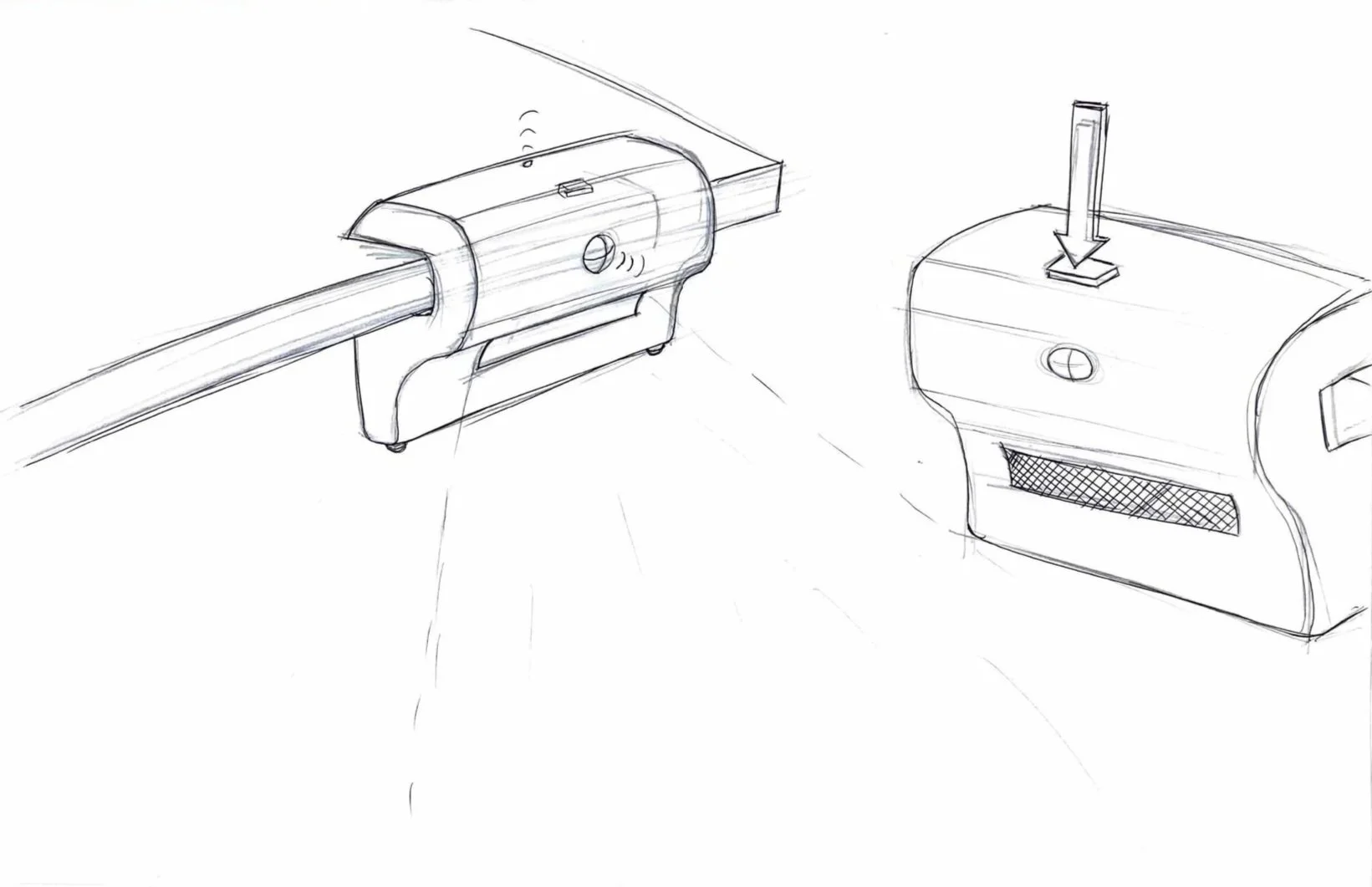

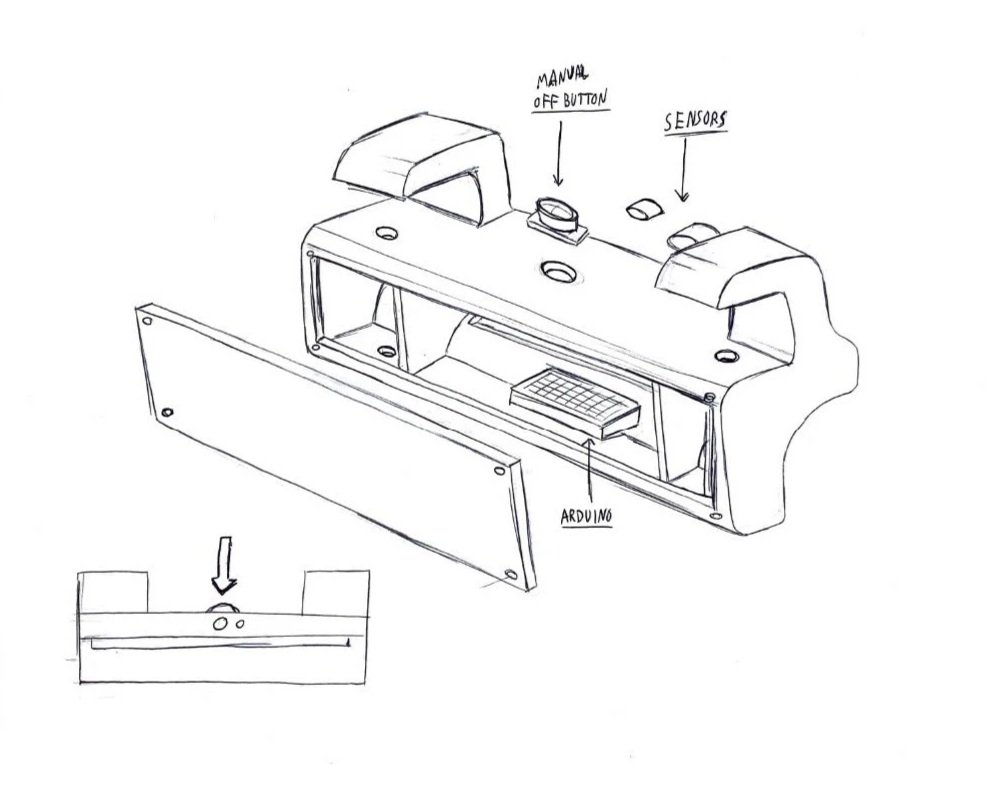

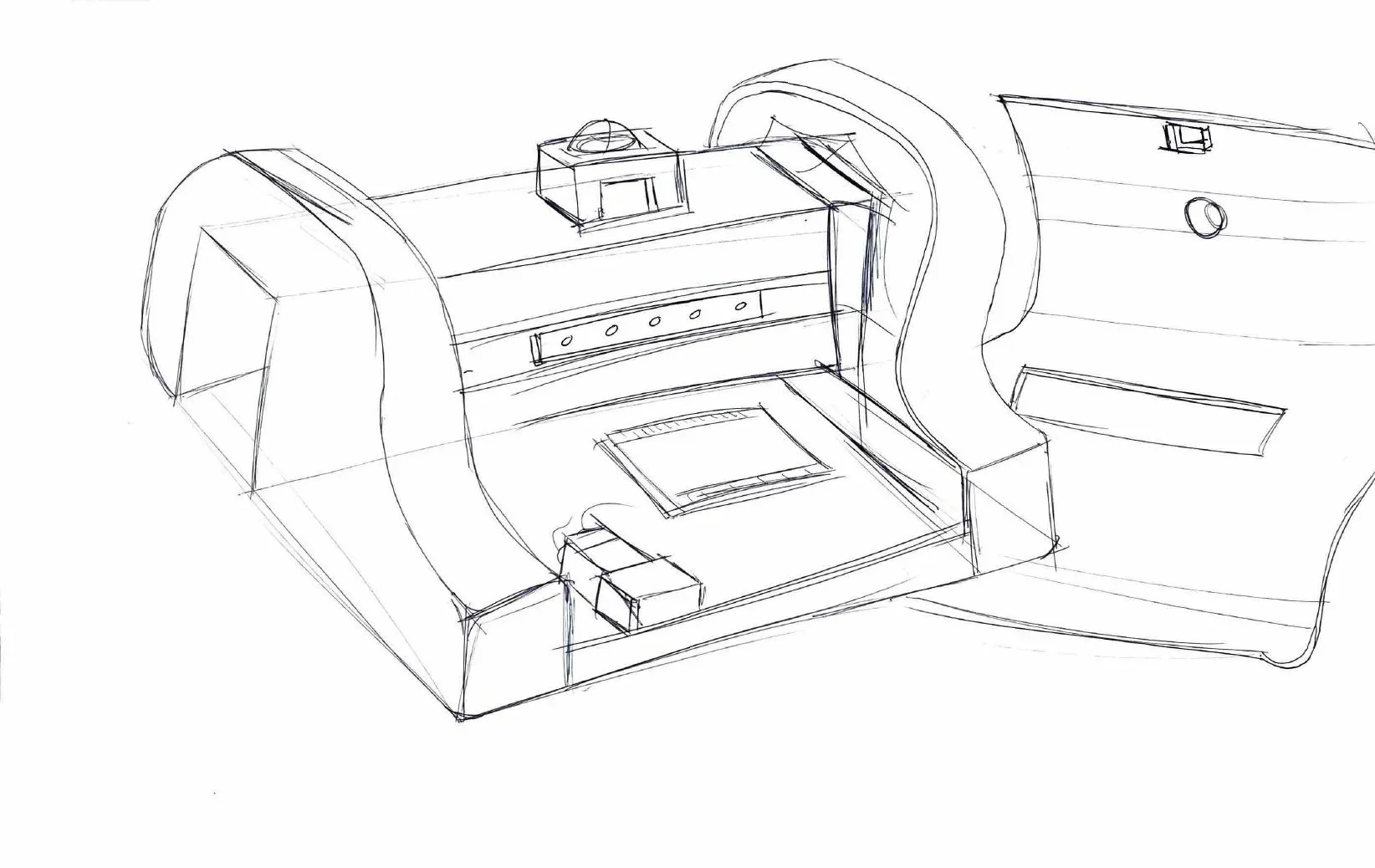

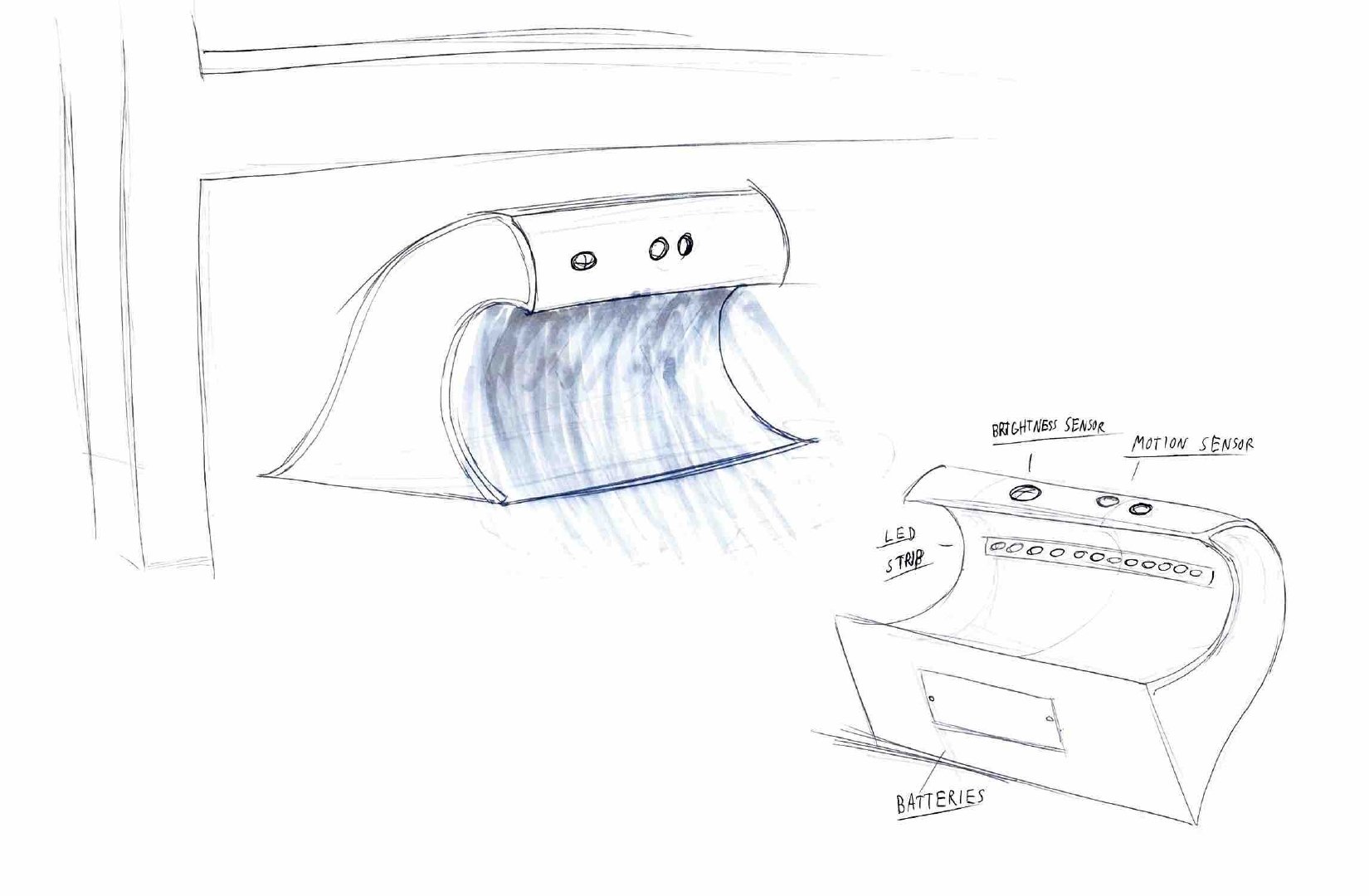

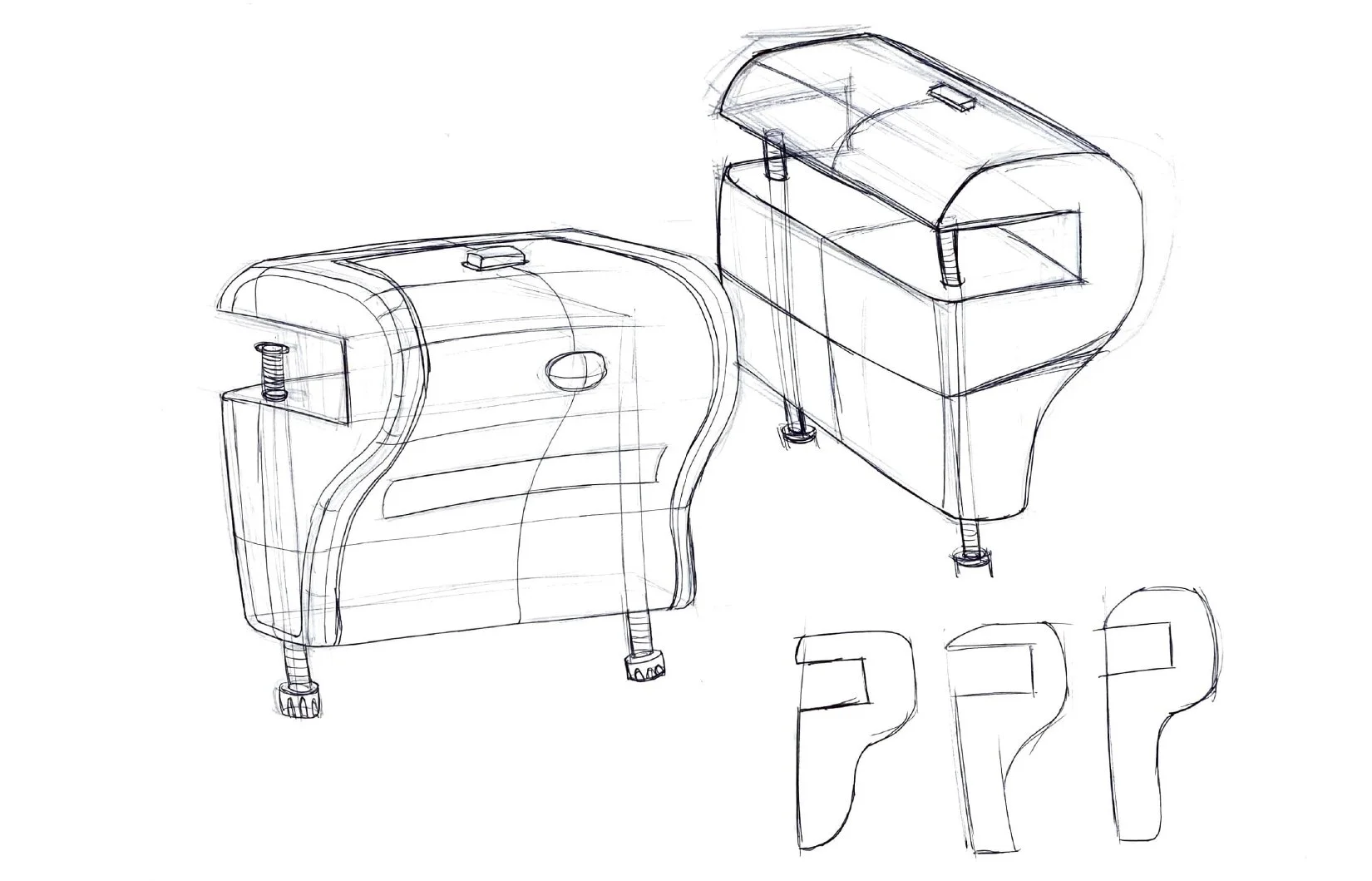

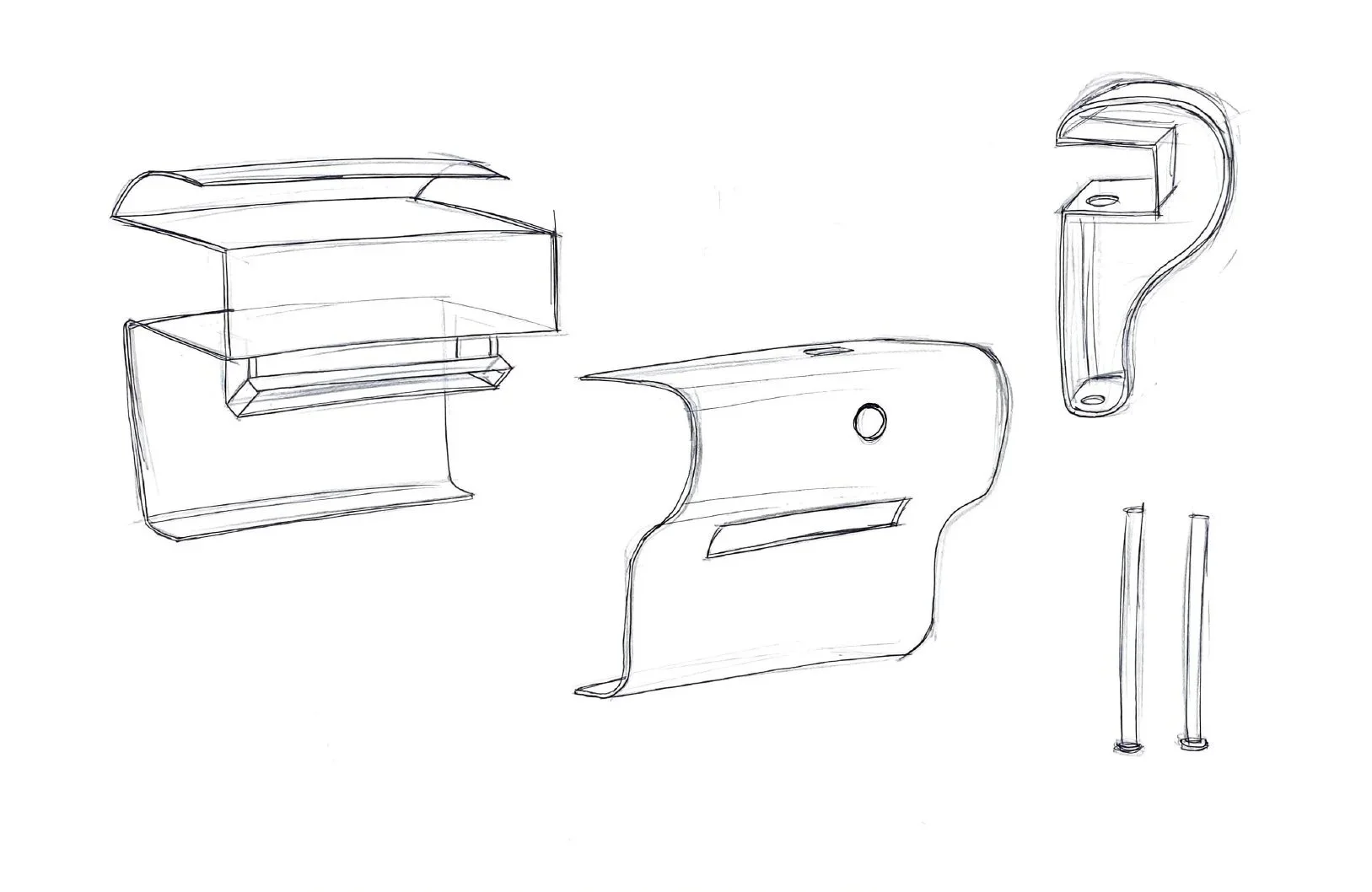

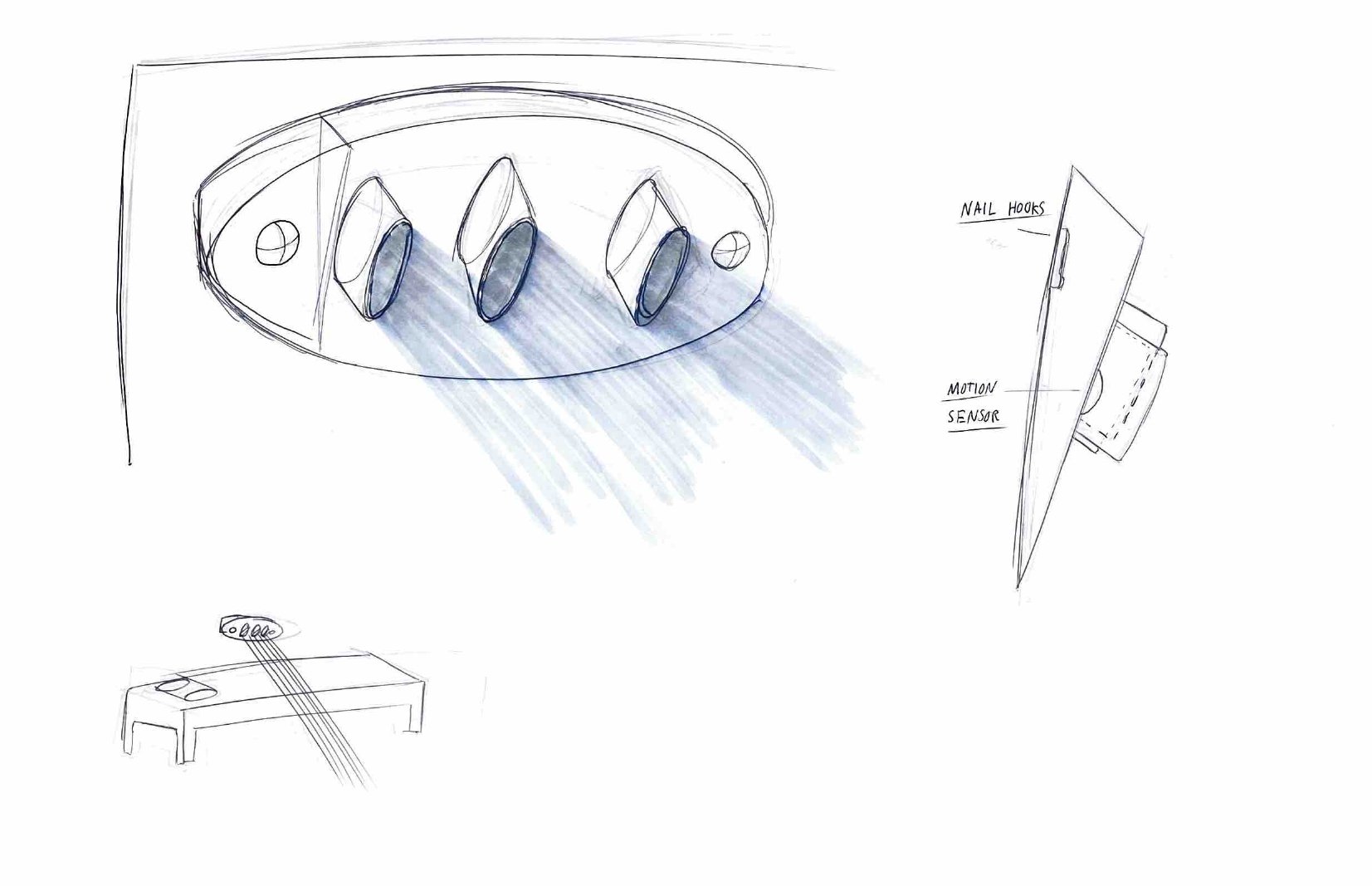

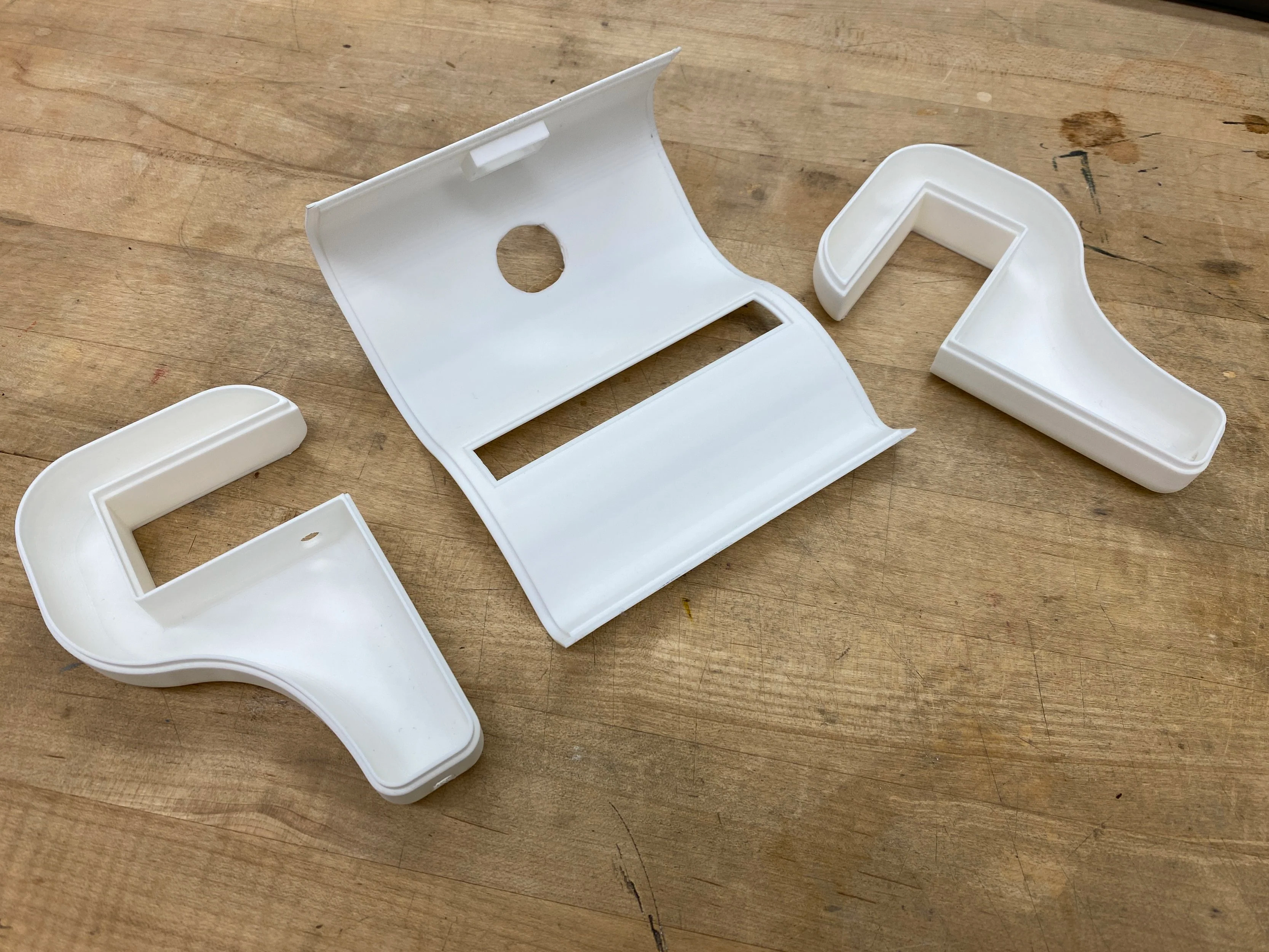

I experimented with different ways to mount the light for easy motion detecting. I developed designs for adjustable clamps and a removable face for battery access.

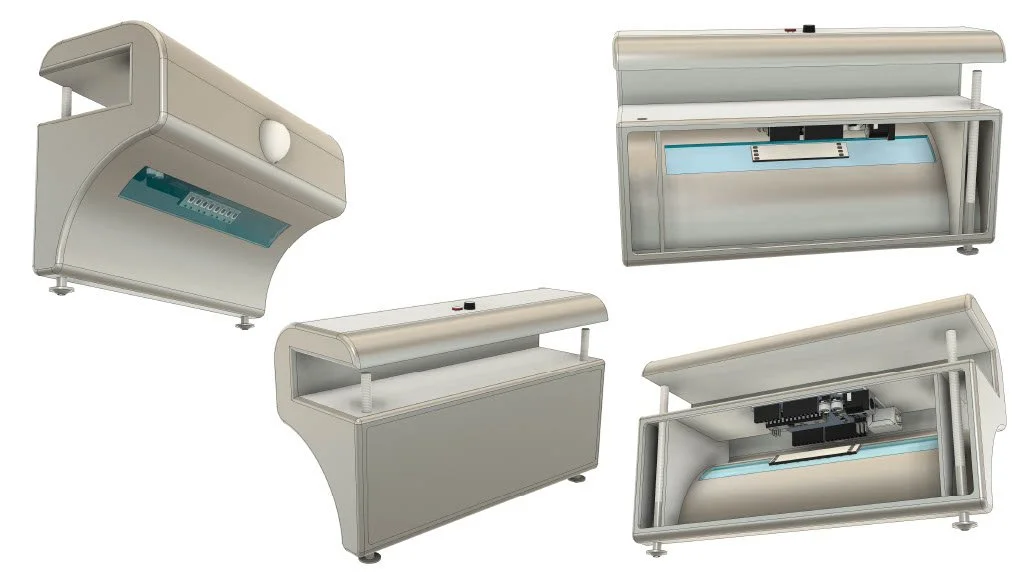

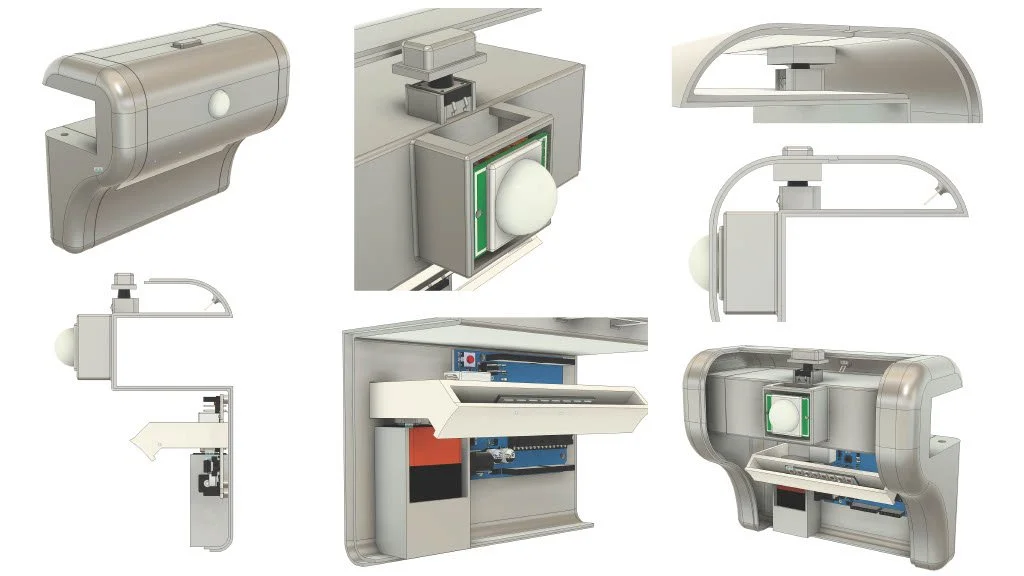

Low Fidelity Prototype & Initial CAD

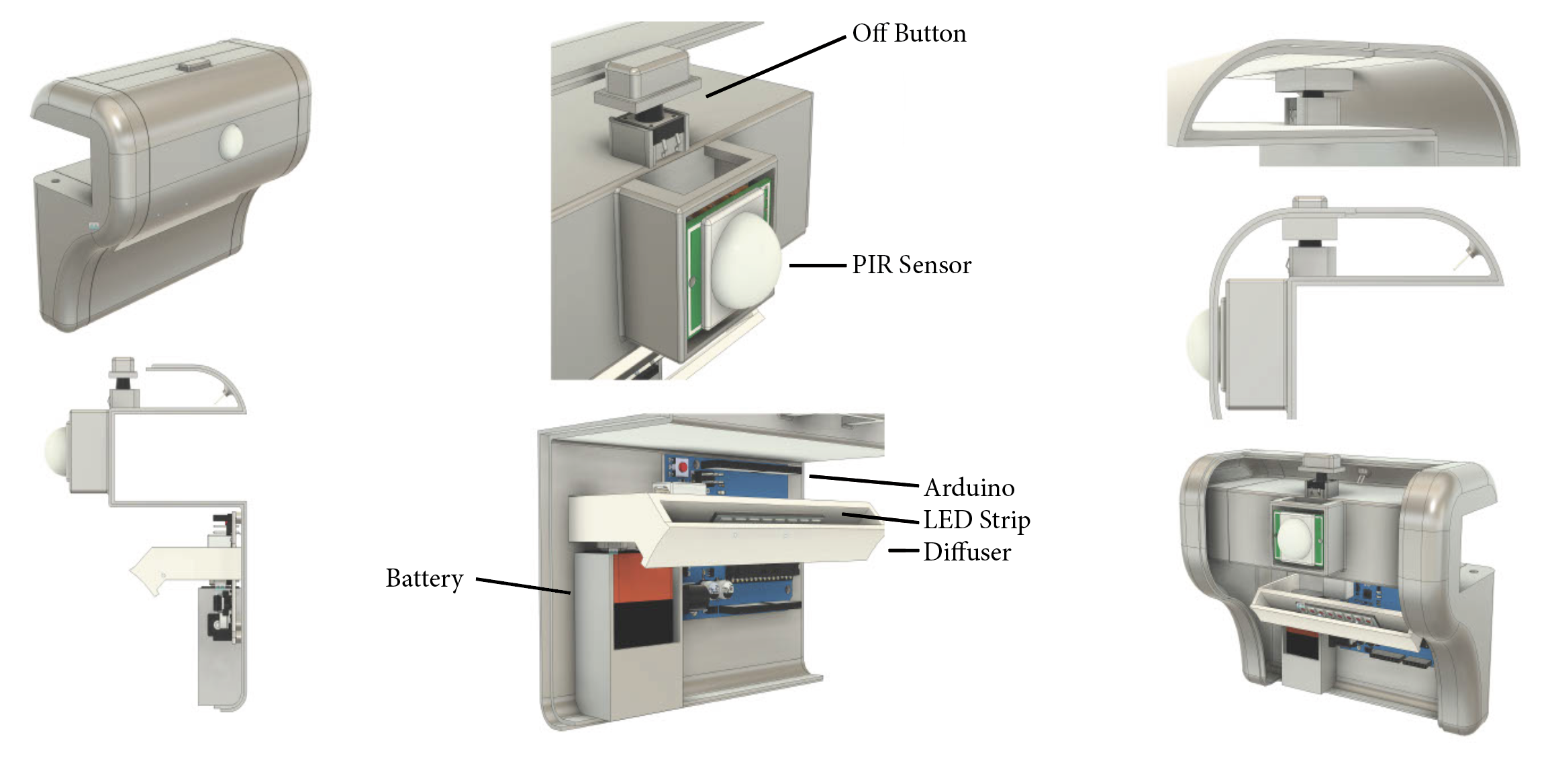

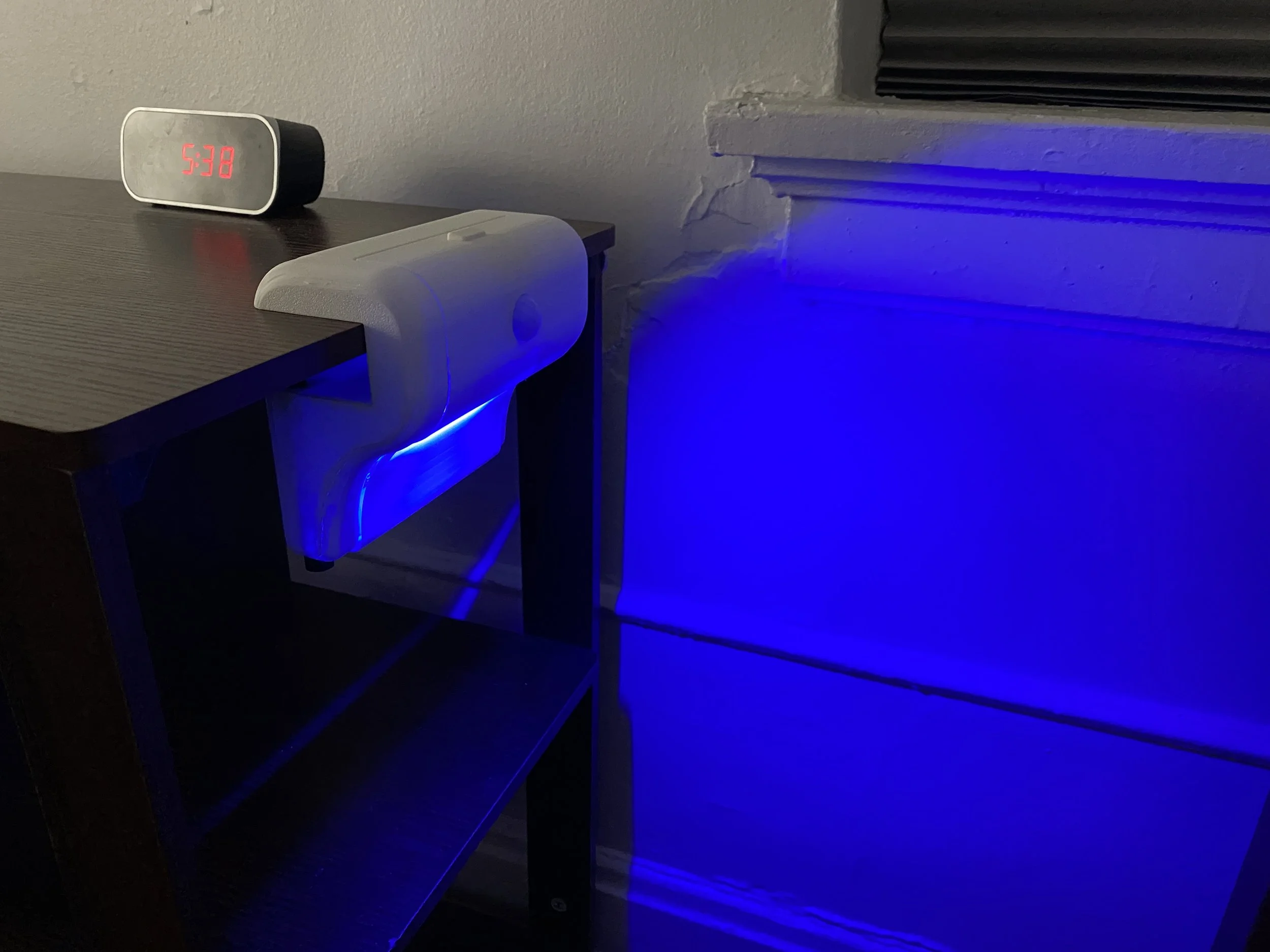

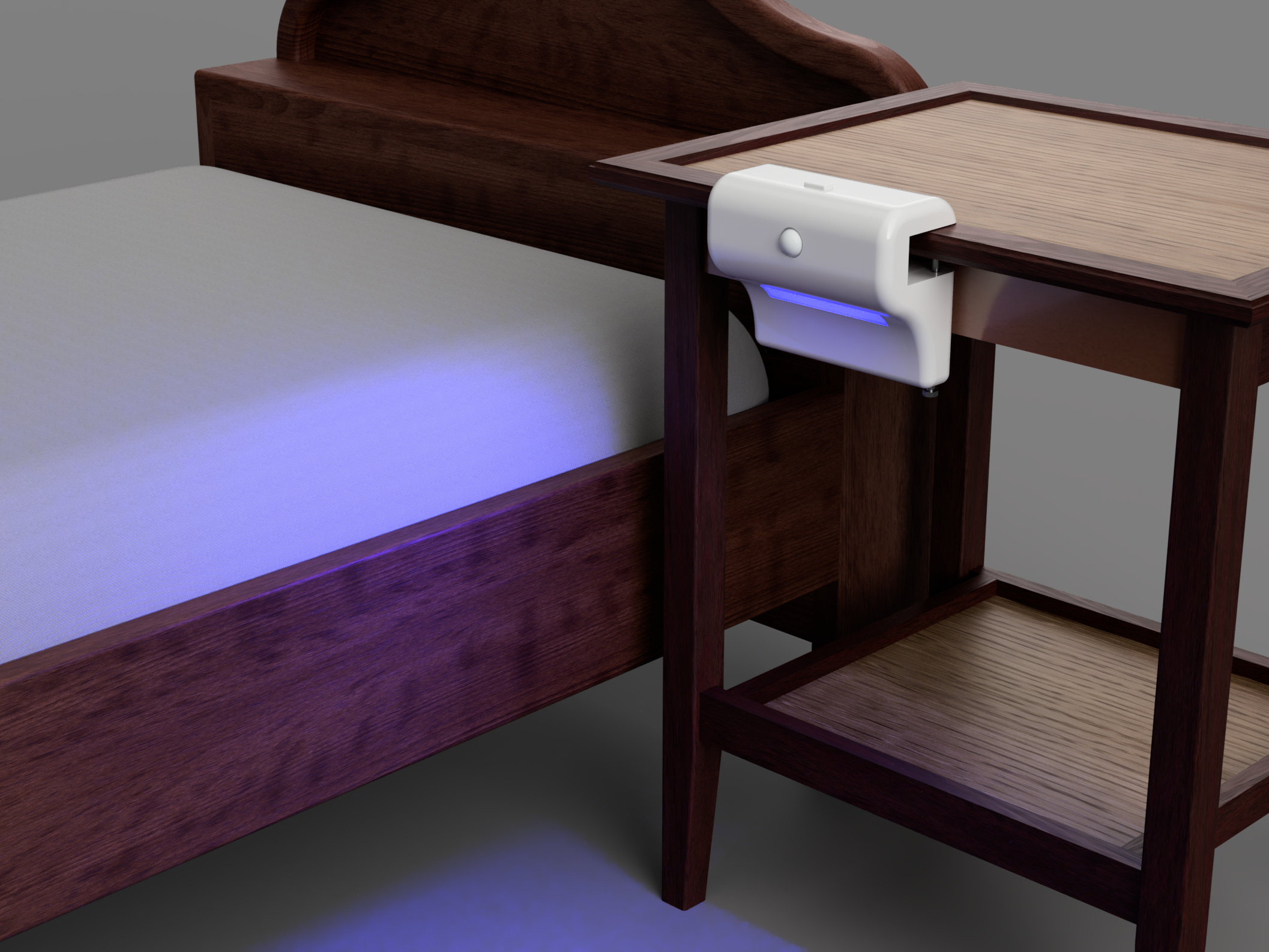

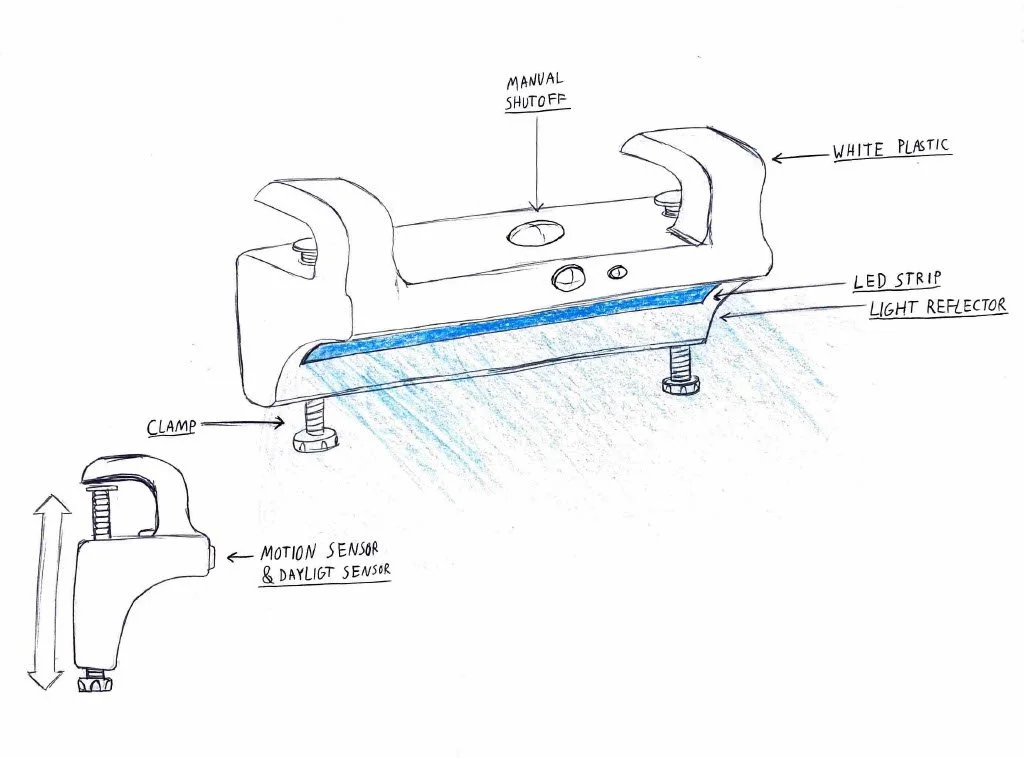

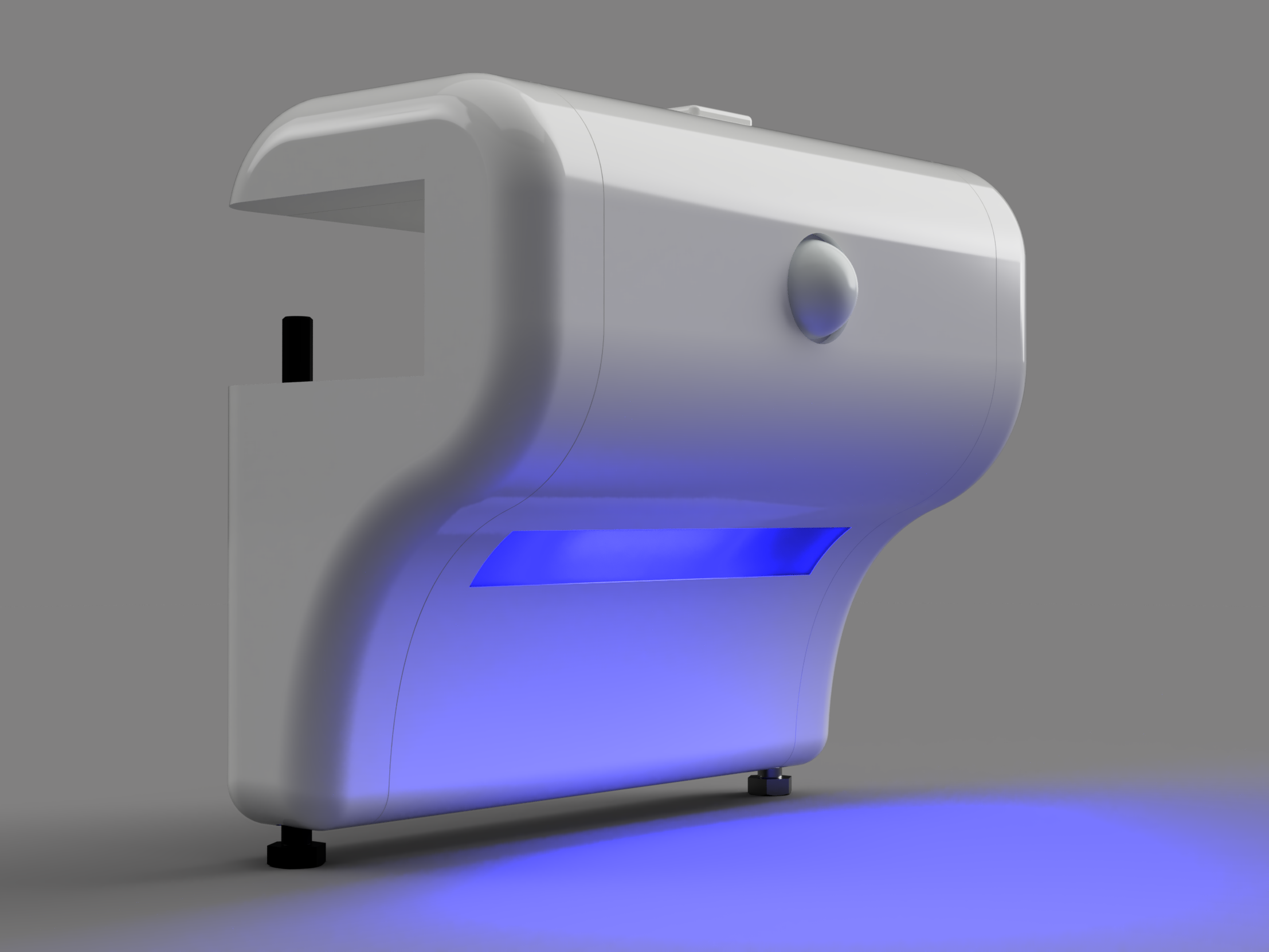

I settled on a design that hangs on the edge of a bedside table using adjustable clamps.

I also added an additional off button in case of accidental activation.

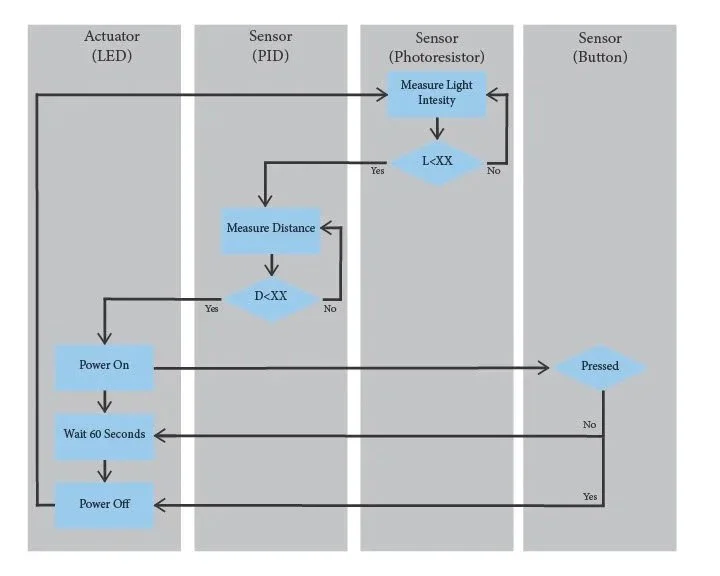

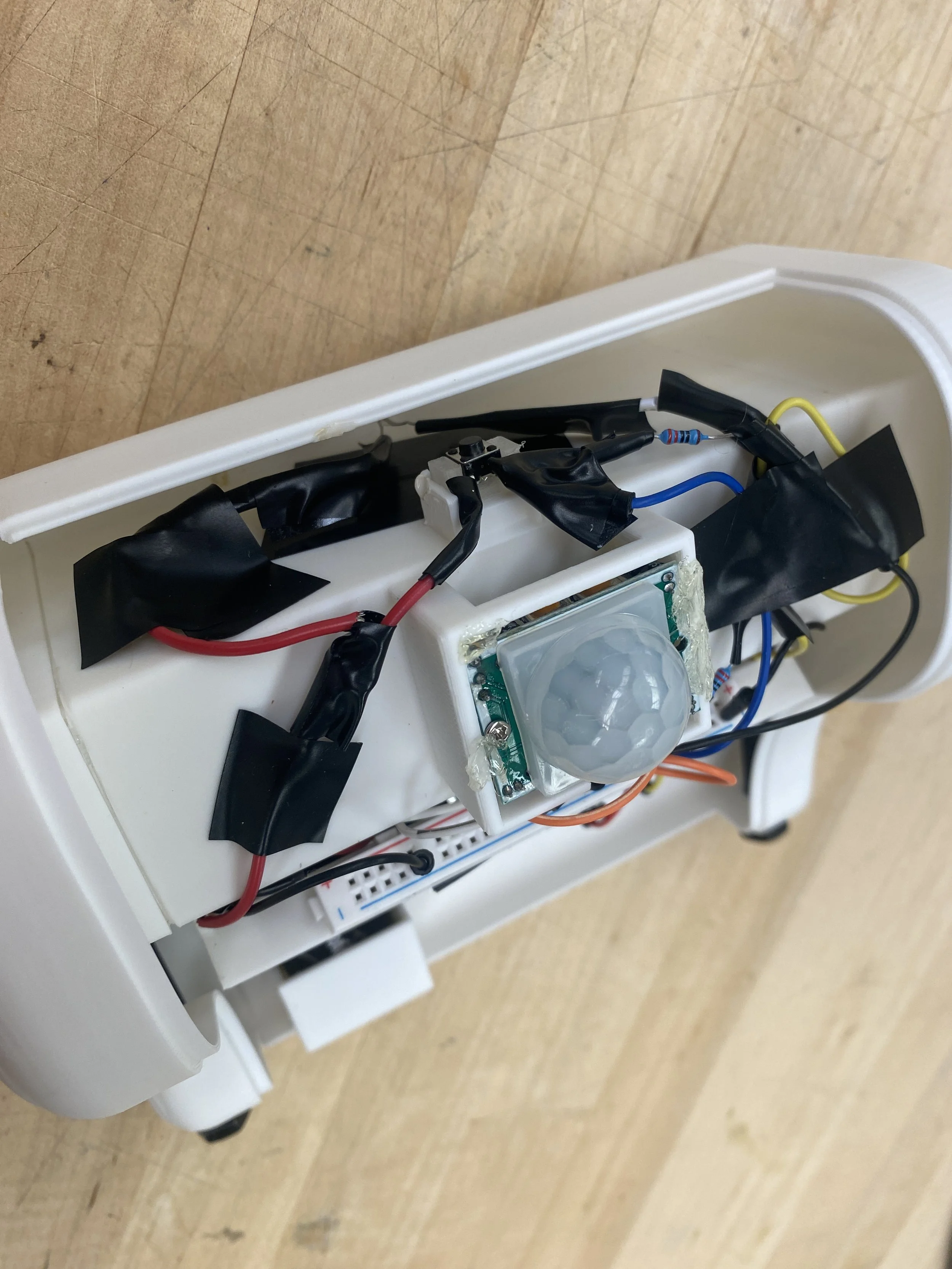

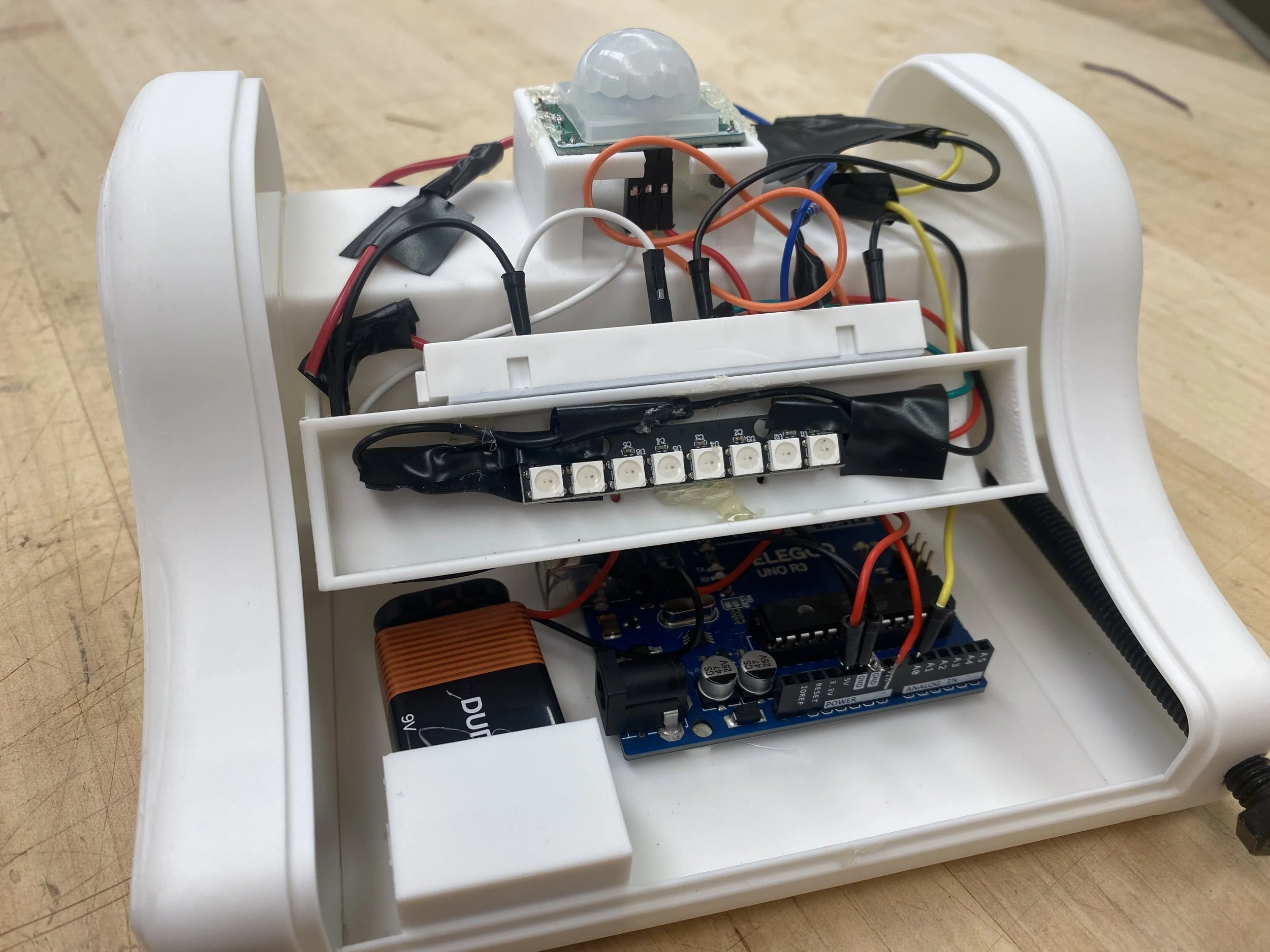

Intelligence Mechanism

Arduino code written by Chat GPT and edited by Designer
